Parameter:

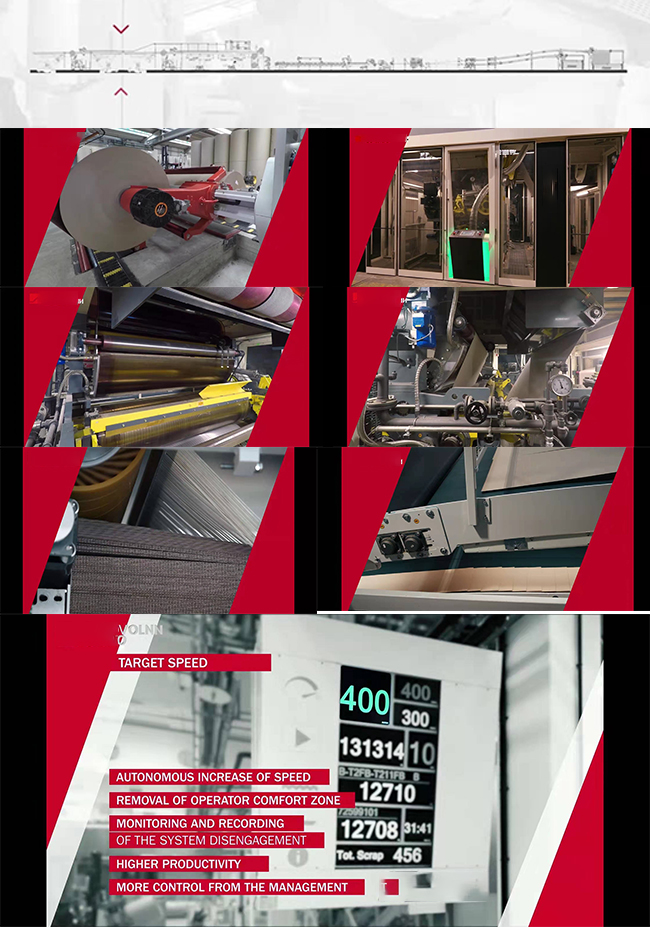

Pos. 1

Reel Stand ODM* equipped with air ventilated brakes and solid chucks
Reel Feeding ODM*
- 2 reel tracks, each 9 m travel way
- one motorized trolley per track

Pos. 2
including web tension control DUAL CONTROL paper break detection
including web tension control DUAL CONTROL paper break detection
paper breaks at speeds up to 120 m/min
automatic splice release at pre-set paper length

Pos. 3
1 Steady Facer
- tungsten coated
- peripheral heating of corrugating rolls
- one manual cassette trolley for quick flute changes
- Heavy Duty pressure roll to suit all standard board grades above 90 g/m2
- hydraulic control for corrugating roll pressure individually adjustable per side
- “Soft Touch Control” for applicator roll by completely self-adjusting hydraulic system
- fully retractable glue unit for easy access and quick cleaning
- automatic glue gap control in regard to machine speed
- full size steam shower chest with drain and quick stop function
- PLC control with touch screen and process data indication
1 Inclined conveyor up to the bridge
- with AC drive energy refeeding
- with automatic wrap adjustment
- with AC drive energy refeeding
- with automatic wrap adjustment
1 Width-related glue dam positioning
1 Additional cassette module equipped with one set of E-flute including chrome coated corrugating rolls, vacuum connection and cleaning finger bar; peripheral heating of corrugating rolls + Cassette trolley, manually or motor driven (option)

Pos. 5
1 Simplex Bridge ODM* consisting of :
Steel construction with steel catwalk on operator side, duplex bridge drive and horizontal conveyors
1 bridge brake with pneumatic brake


Pos. 6
1 Double Preheater 900mm ODM*
- operator control and display integrated in the Glue Unit GU-180 operating panel
- with AC drive energy refeeding
- with automatic wrap adjustment

Pos. 7
1 Simplex Glue Unit GU-180
- with individual servo drives
- integrated touch panel

Pos. 8

- pre-set loading pressure from full load to free floating depending on board combination
- automatic lifting of edge bars to prevent extensive belt wear when running small width papers

Pos. 9
1 Rotary Shear RD-180 RD-180 for normal order change
- 30 kW A.C. drive
- max. cutting speed 180 m/min.
1 Synchro Cut triggered cut at order changes for max. 0.5 m order change waste

Pos. 10
1 Slitter Scorer
SR-180 - scorer, scorer, slitter
- for 5 outs
- trim tube positioning
- Disc-Cut system, cut from bottom side
- Swing Change for uninterrupted web during order change
1 Air conditioning unit for machine side switch cabinets
1 3-in-1-profile (male – female, male – male, male – male offset)

Pos. 11

1 Transfer Tables, Simplex, in stainless steel construction between Rotary Shear / Slitter Scorer and Slitter Scorer / Cutoff
1 Protection devices for SR-230 and HQ-230

Pos. 12
1 Simplex High Speed Cutoff HQ-180
1 Double roll infeed for improved pulling of heavy boards

Pos. 13
1 Automatic Simplex Stacker US-180
- chamber length: 3,600 mm - stack height : 1,800 mm
- plastic belt cross conveyor
- air conditioning unit
Pos. 14
CORRUGATOR CONTROL SYSTEM
1 Duplex Bridge Level Control BLC with light barrier detection
1 Parallel operating screen
